Railroad Car Painting: 90-Foot Spliced PVC Air-Beam Booth

When a railroad maintenance facility in Long Beach, CA needed an on-track spray booth that could swallow an entire railcar, they came to the team that had already solved this problem before. July 2026.

The Question Every Custom Client Asks

Before discussing dimensions or materials, the client had one overriding concern:

This is the right question. It's the question every industrial buyer should ask. And it's the reason we lead with domain expertise, not just technical specs.

Railroad Industry Experience

Sewinfla has produced inflatable paint booths for multiple transportation sectors where oversized dimensions and zero-footprint operation are non-negotiable:

• Bus & coach refinishing — 65×25×28Ft booths with drive-through capability
• Truck & trailer painting — 56×25×20Ft booths with continuous-inflation systems for multi-shift operation
• Heavy equipment & fleet maintenance — oversized booths deployed at municipal and DOT facilities
• Railroad rolling stock — this 90ft project builds on the same core engineering principles proven across the transportation sector

The common thread: these are not modified consumer booths. They share a dedicated engineering DNA — heavier-gauge PVC air columns, industrial blower arrays, active ventilation designed for high-VOC coatings, and modular architecture that adapts to constrained worksites.

Solution Architecture

Industry-Specific Design Decisions

1. Working Over Live Tracks — The Detachable Floor System

Railroad maintenance facilities cannot permanently modify their track beds. The booth must erect directly over rails and ballast, then disappear completely when the job is done. This ruled out every standard booth design.

Our solution, refined from prior transportation-sector projects:

• A fully detachable Velcro groundsheet that seals to the base of every air column. Each column has fabric anchor loops sewn to its bottom edge — providing a secure attachment surface while allowing enough slack for proper inflation and column alignment.
• Mini door strips at the front and rear door bases maintain the airtight seal when the main floor is removed — a feature originally developed for truck booths that need to accommodate varying vehicle widths.
• The entire floor system can be deployed or removed by a two-person crew in under 30 minutes — critical for facilities that switch between painting and track maintenance.

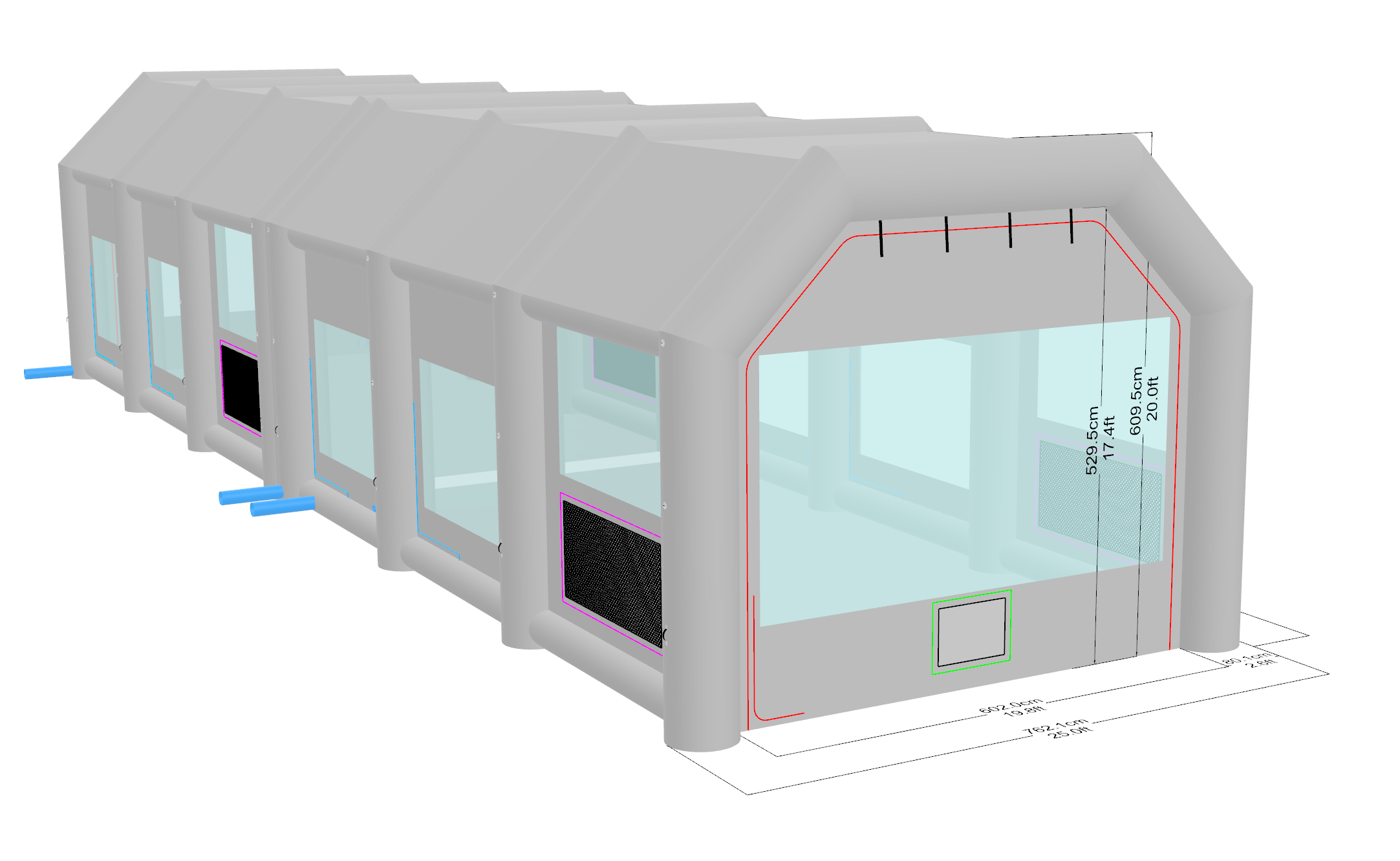

2. The 90-Foot Challenge — Spliced Architecture

A single-chamber inflatable at 90 feet would suffer from uneven air pressure distribution, sag at the midpoint, and enormous wind load on the side walls. The spliced design — two 45-foot chambers joined at the center — solves all three problems simultaneously:

• Each chamber operates as an independent pressure vessel with its own 4-blower array, ensuring uniform column rigidity across the entire span.
• The shared interior wall is eliminated — the two chambers open into a single continuous workspace.
• External connection via industrial hook-and-loop fastener (extra-long strips for tension variance); internal connection via heavy-duty D-rings and tension ropes for structural redundancy.

3. Ventilation for Railroad-Grade Coatings

Railroad coatings — epoxies, polyurethanes, anti-corrosion primers — produce heavy overspray volumes that consumer-grade ventilation cannot handle. The system was specified for the chemistry involved:

• 4 primary exhaust ports at the rear (high-CFM configuration for active fume extraction).
• 2 spare intake ports on the front section side walls (Velcro-covered, activated when additional cross-flow is needed for solvent-heavy coatings).
• Internal blue extraction duct behind the rear door — positioned at fume accumulation height, following the same design used in our bus and truck booths.
• EPA-registered fiberglass + activated carbon filtration as standard.

4. Structural Over-Engineering for a 21-Foot Wall

At 21 feet tall, the wind load on the side walls is approximately 2.5× higher than a standard 13-foot booth. Every load path was upgraded:

• Extended reinforced webbing on all D-ring anchor points — the D-ring strap itself is longer and thicker-gauge than standard, distributing tension across more fabric surface area.
• Webbing-type guy ropes instead of cord — higher tensile strength and better abrasion resistance for outdoor railroad yard conditions.
• Heavy-duty stitching on every seam, zipper, handle, and attachment point — specified for the increased structural load, not just scaled up from a smaller booth pattern.

5. Access Designed for Railroad Workflows

• Full-height front and rear doors (~17.5 Ft) — a railcar on a flatbed can enter without obstruction.
• Center-positioned rear personnel door — moved from the side wall to the center for direct worker access to the railcar coupling area.
• 2 emergency escape windows on the front section (rear-section windows removed to reduce unnecessary openings near the exhaust zone).
• Uniform-height mesh transparency windows along the side walls for natural light and supervisor visibility.

Project Timeline

Client Context

Industry: Railroad Rolling Stock Maintenance & Refinishing
Location: Long Beach, California, USA
Application: On-track painting of full-size railroad cars — epoxy primers, polyurethane topcoats, anti-corrosion treatments
Core Constraint: Booth must erect over active rail infrastructure without permanent modifications to the track bed. No floor, no foundation, complete removal between jobs.

Why This Matters for Future Railroad Clients

• ✅ Proven railroad workflow: The detachable floor + mini door strip system is now a documented, repeatable solution for any rail maintenance facility.
• ✅ 90-foot continuous span validated: The spliced dual-chamber architecture is confirmed at this scale — not theoretical, not extrapolated.
• ✅ 8-blower inflation array with independent pressure zones per chamber — eliminates sag and ensures stable column pressure across the entire length.
• ✅ Industrial ventilation spec already matched to the VOC profile of railroad coatings — no guesswork for the next project.
• ✅ 13-day production cycle demonstrates that urgent railroad maintenance schedules can be accommodated without compromise.

Images shown are from comparable Sewinfla transportation-sector projects for reference. Client identity anonymized for privacy.
