90×25×21FT Modular Inflatable Paint Booth
A dual-section, Velcro-connected custom build engineered for high-volume professional painters. Two independent 45×25×21FT booths combine to form a 90-foot continuous spray environment. 8 blowers deliver 5,648 CFM total airflow through EPA-certified filtration.
Engineering Parameters
Every dimension, material, and component documented for professional evaluation.

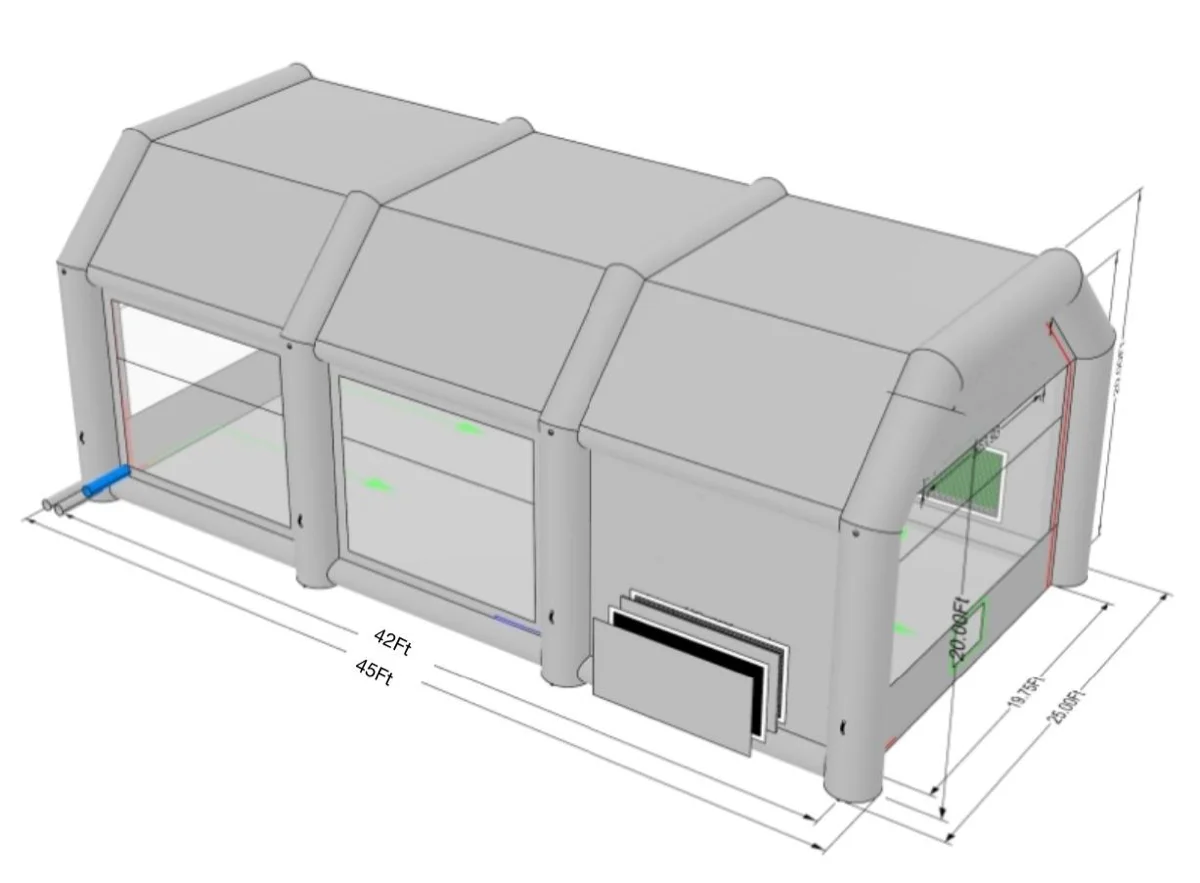

Booth Dimensions
Materials & Construction
Ventilation & Filtration

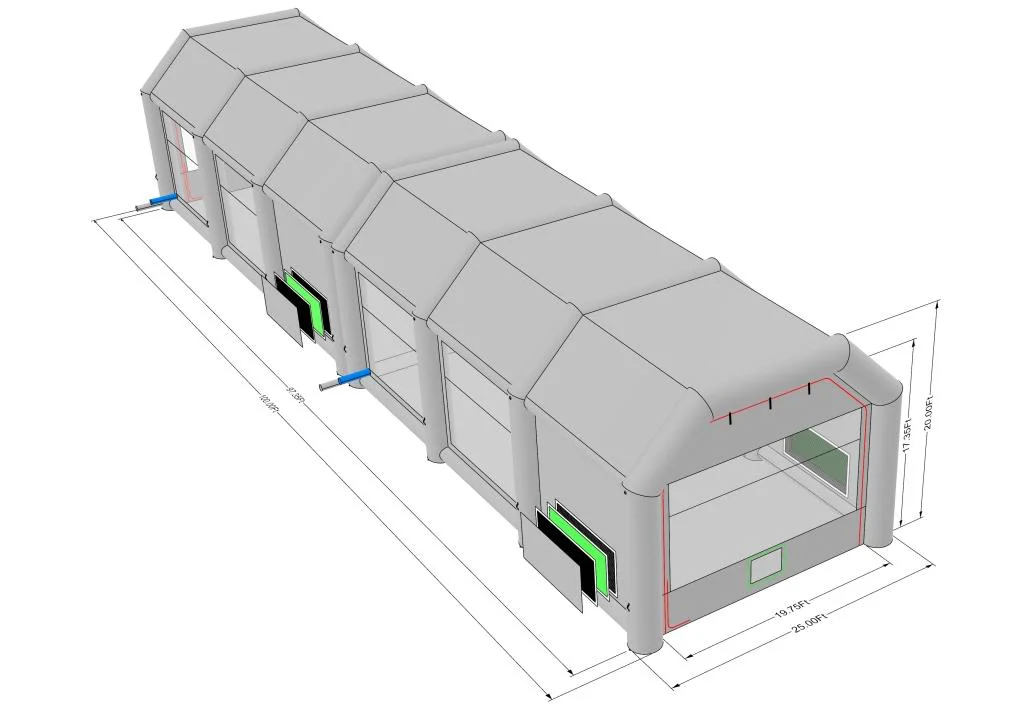

Modular Dual-Section Design
Two independent 45×25×21FT booths connected via industrial-grade Velcro, forming a continuous 90-foot workspace. Each section operates independently or as a unified chamber.

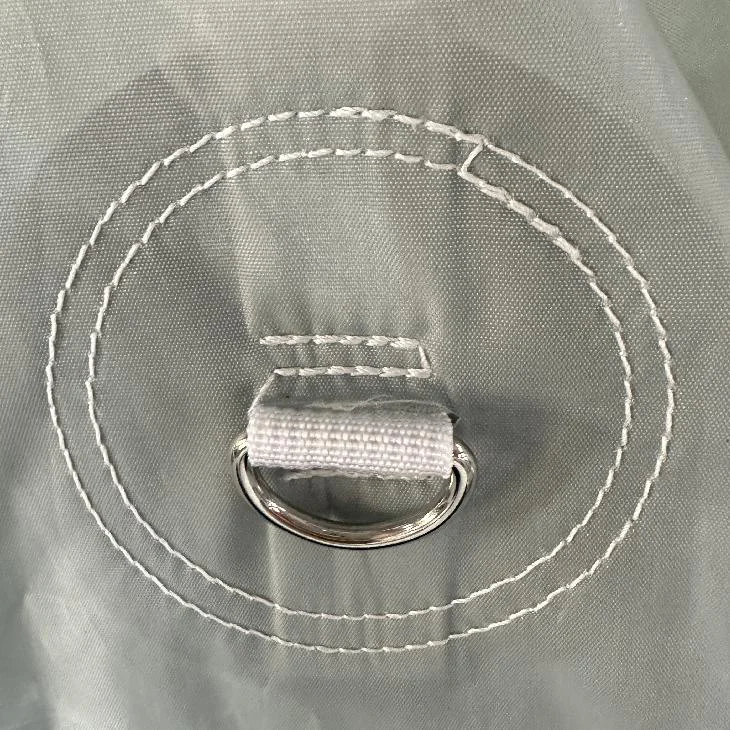

Reinforced Metal D-Rings
Top and bottom D-shaped rings on every anchor point — all high-quality metal, not plastic. Withstands repeated tensioning. Fast, reliable fastening to ground anchors even in windy conditions.

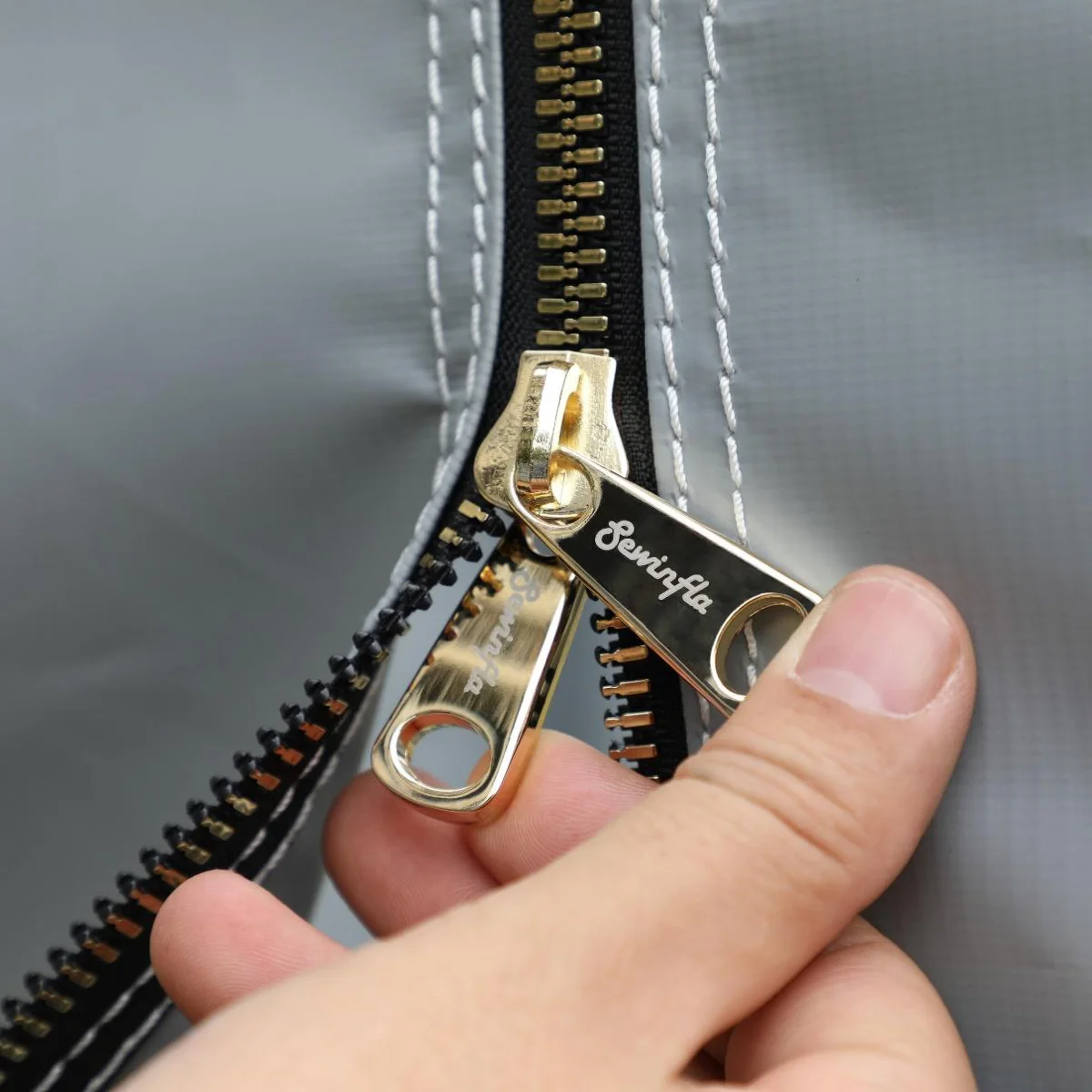

Strengthened Zippers
Double-ended, plus-size zippers on all doors. The zipper is the most common failure point on inflatable booths — Sewinfla's oversized design distributes stress across more teeth, reducing separation and jamming.

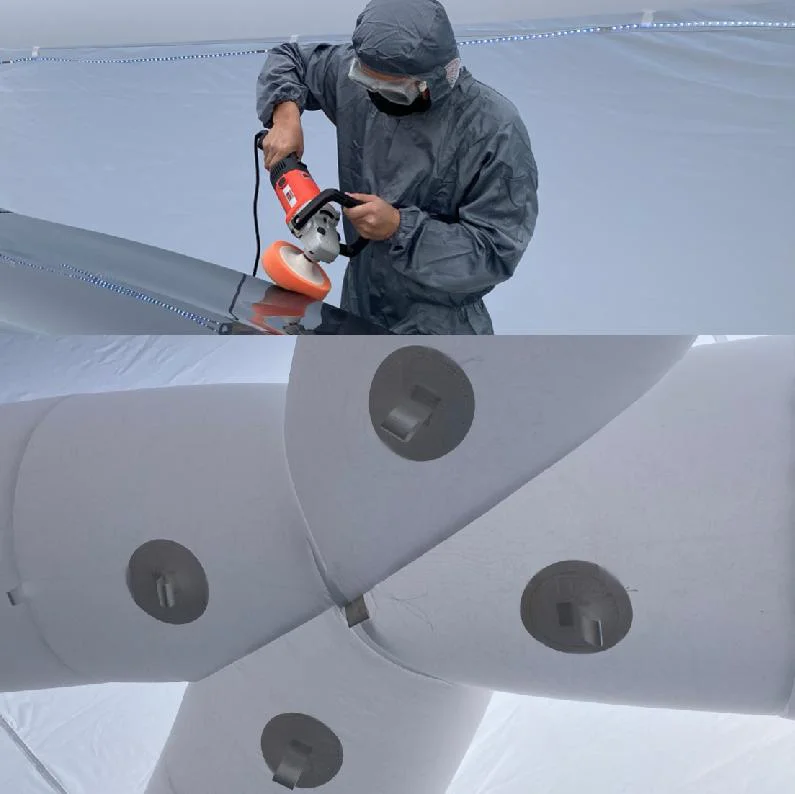

Hanging Buckle System
Extensive internal buckle network: top-positioned buckles for overhead lighting rigs, side-positioned buckles for LED panel mounting, and utility buckles for hanging parts during painting.

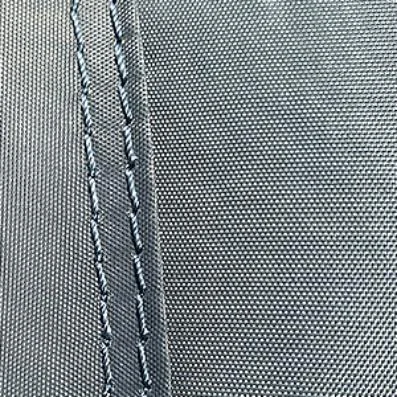

Mechanized Precision Cutting
All fabric panels are machine-cut — not by hand. Eliminates the inconsistencies of manual cutting: uneven seams, exposed stitching, and panel misalignment. Every inflation is perfectly symmetrical.

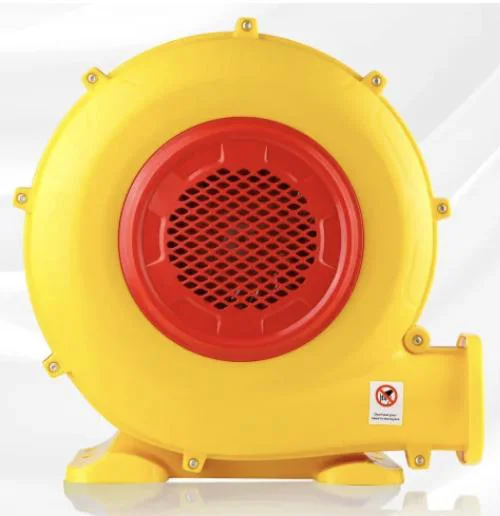

Dual-Blower Airflow Architecture
Eight blowers distributed across two roles: continuous inflation maintains structural integrity, while active ventilation manages overspray and air quality. This separation ensures the booth stays fully inflated regardless of filtration settings.

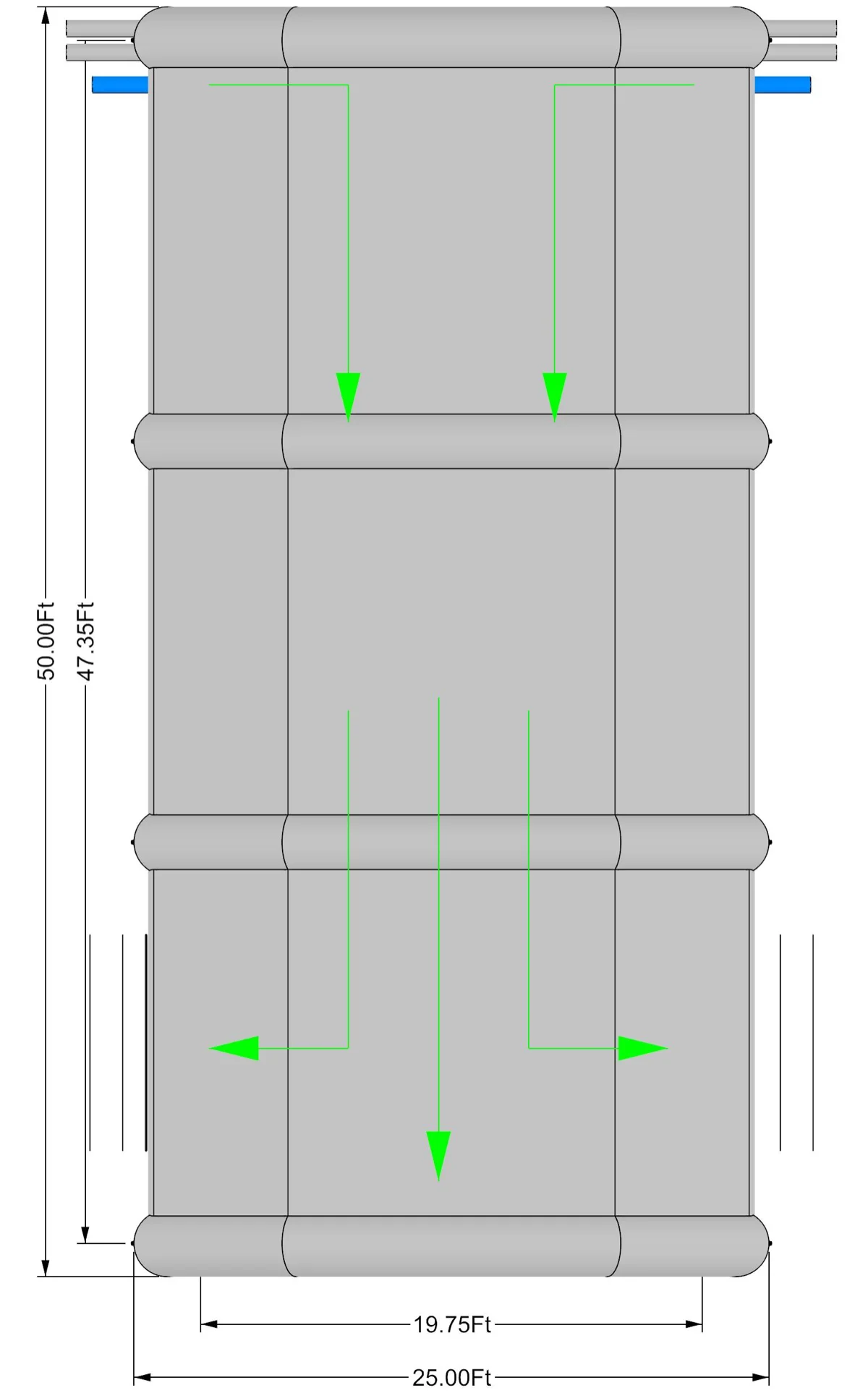

Single Booth Schematic
Blue air duct supplies fresh air from rear blower. Pressure differential forces exhaust through side windows — filtered by double-layer cotton before release.
Rear intake → Workspace → Side window exhaust (filtered)

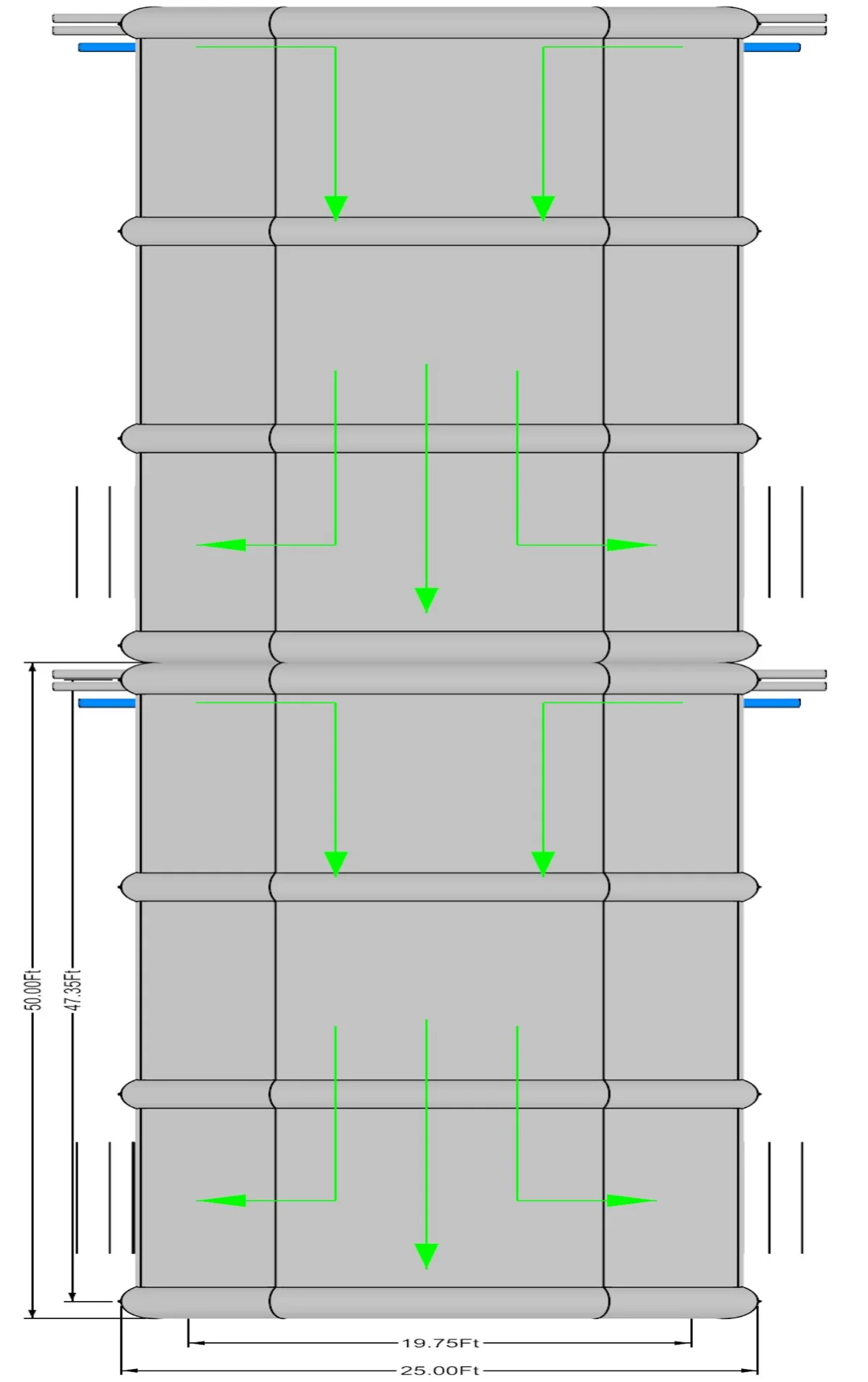

Combined 2-Booth Schematic
Gray duct: continuous inflation blowers. Blue duct: ventilation + filtration blowers. Structural pressure is never compromised by filtration demands.
Gray: Inflation | Blue: Ventilation

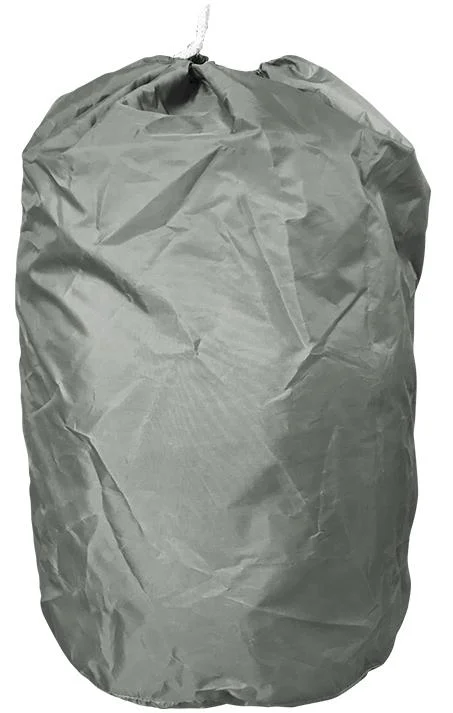

Everything Needed to Deploy
Each custom booth ships with a complete deployment kit — no separate purchases required.
Customer Applications
Real-world deployment of Sewinfla custom inflatable paint booths.
Commercial fleet painting — full-size trucks and buses fit comfortably in custom-sized booths.
Large equipment and specialty vehicles. Modular design adapts to project dimensions.

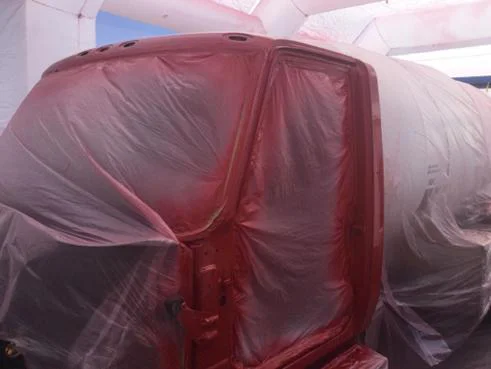

Professional auto body shops. Clean, controlled environment for high-quality finishes.

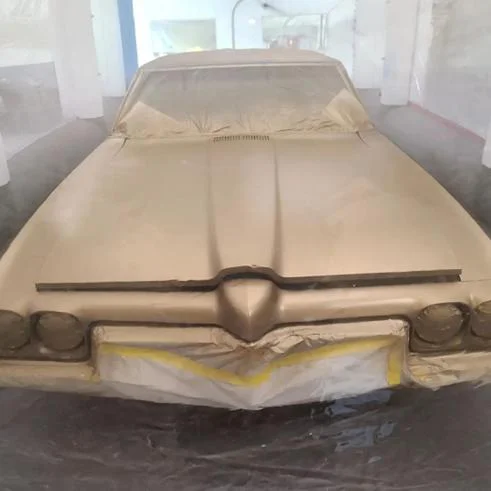

Indoor warehouse deployment. Climate-controlled painting year-round.
Safety & Usage Notes
Essential parameters for safe, long-lasting booth performance.
Weather
Not water-resistant. Do not use outdoors in rain, snow, or high wind.
Sharp Objects
Keep knives and tools away from fabric. Pull the booth gently — do not drag.
Ventilation
Always leave vent covers open during painting. Closed vents cause pressure buildup.
Electricity
Exercise caution near the booth. Ensure all wiring is properly insulated.
Heat Sources
Keep heating tools and open flames away from fabric. Minimum 3 FT safe distance.
Low Temperature
Avoid painting below 50°F (10°C). Inflate indoors during winter.
Partial Painting
When partially painting a vehicle, completely cover unpainted areas.
Built to Your Specs
Every custom booth undergoes thorough quality examination before leaving the factory. Custom products are non-returnable — we verify zero quality issues before shipment. If air leakage or breakage occurs from improper use, the included repair kit is designed for on-site fixes.
